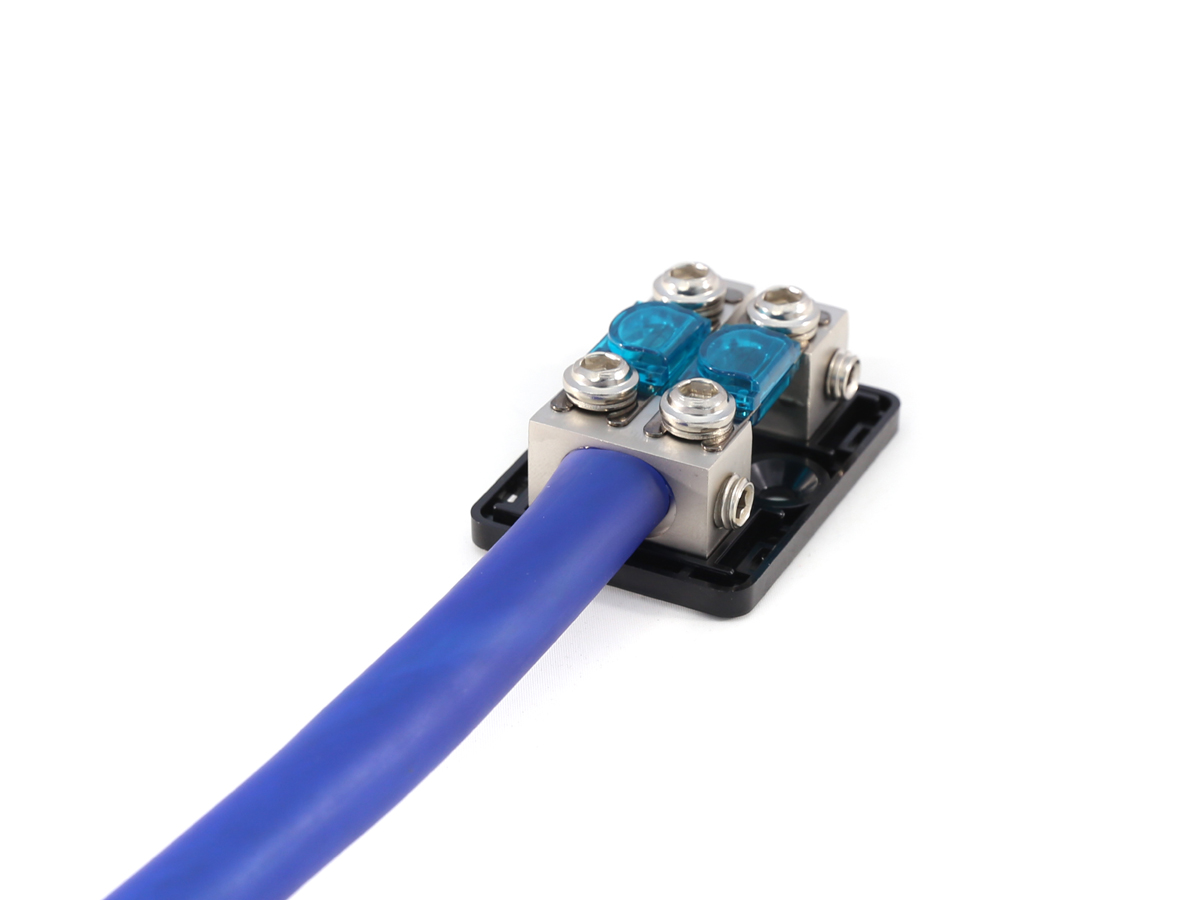

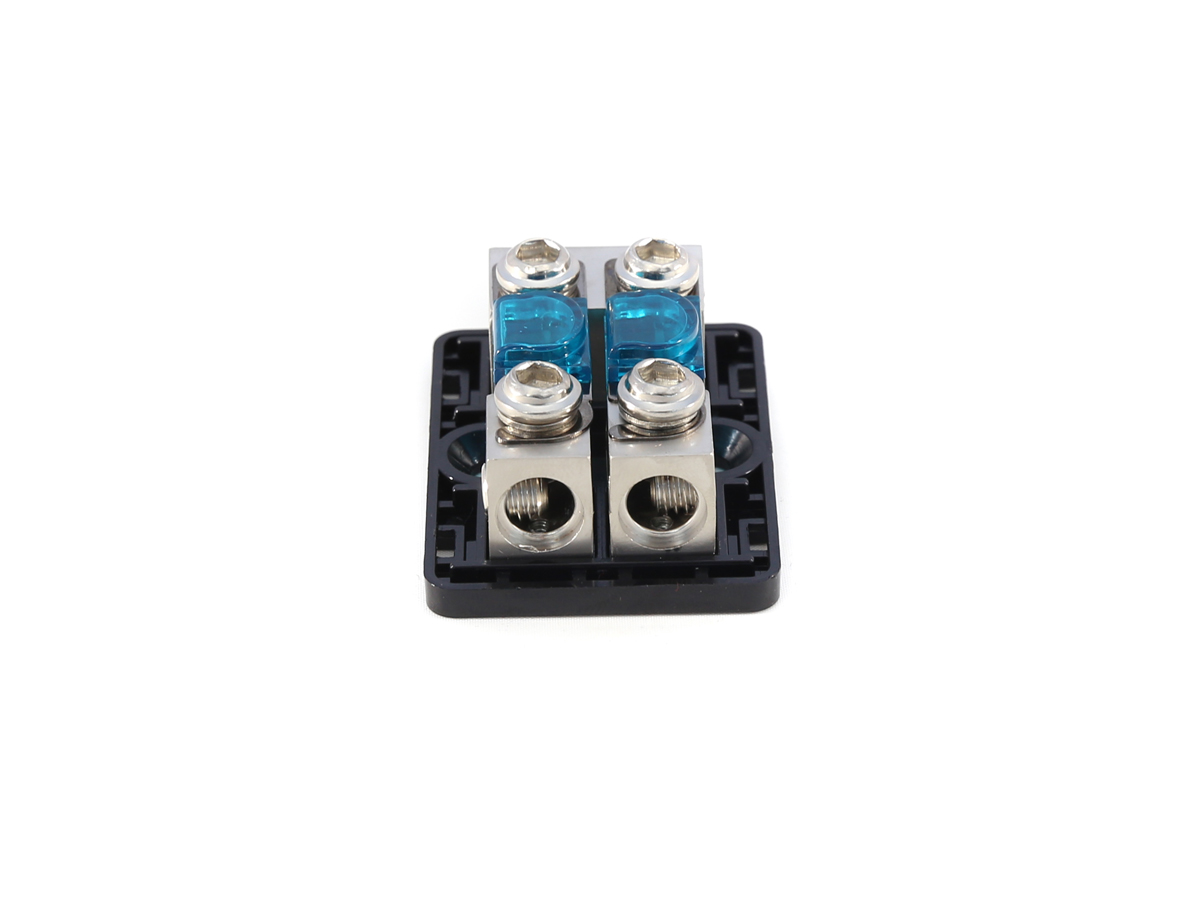

Bassik 2 Way 1/0 to 4 Gauge Fuse Distribution Block

Brand: KnuKonceptz
Product SKU: BK-1024
Availability: In Stock
Weight: 0.25
Price: $9.49

Fuse Size 1 Fuse Size 2
QTY
  • Bassik 2 Way 1/0 to 4 Gauge Fuse Distribution Block
  • 0 Gauge Mini ANL Fuse Block
  • 0 Gauge Mini ANL Fuse Distribution Block
  • 0 Gauge Mini ANL Distribution Block
  • 0 Gauge Mini ANL Distribution Block

Bassik - simple, clean, easy. This is the foundation of what KnuKonceptz calls Bassik. Easy to install, simple to connect and cost effective! The BK-1024 accepts 0 or 4 gauge in and 4 or 8 gauge power wire out without the use of adapters. Oversized allen screws can secure either gauge without any modification or additional parts to complicate the design.

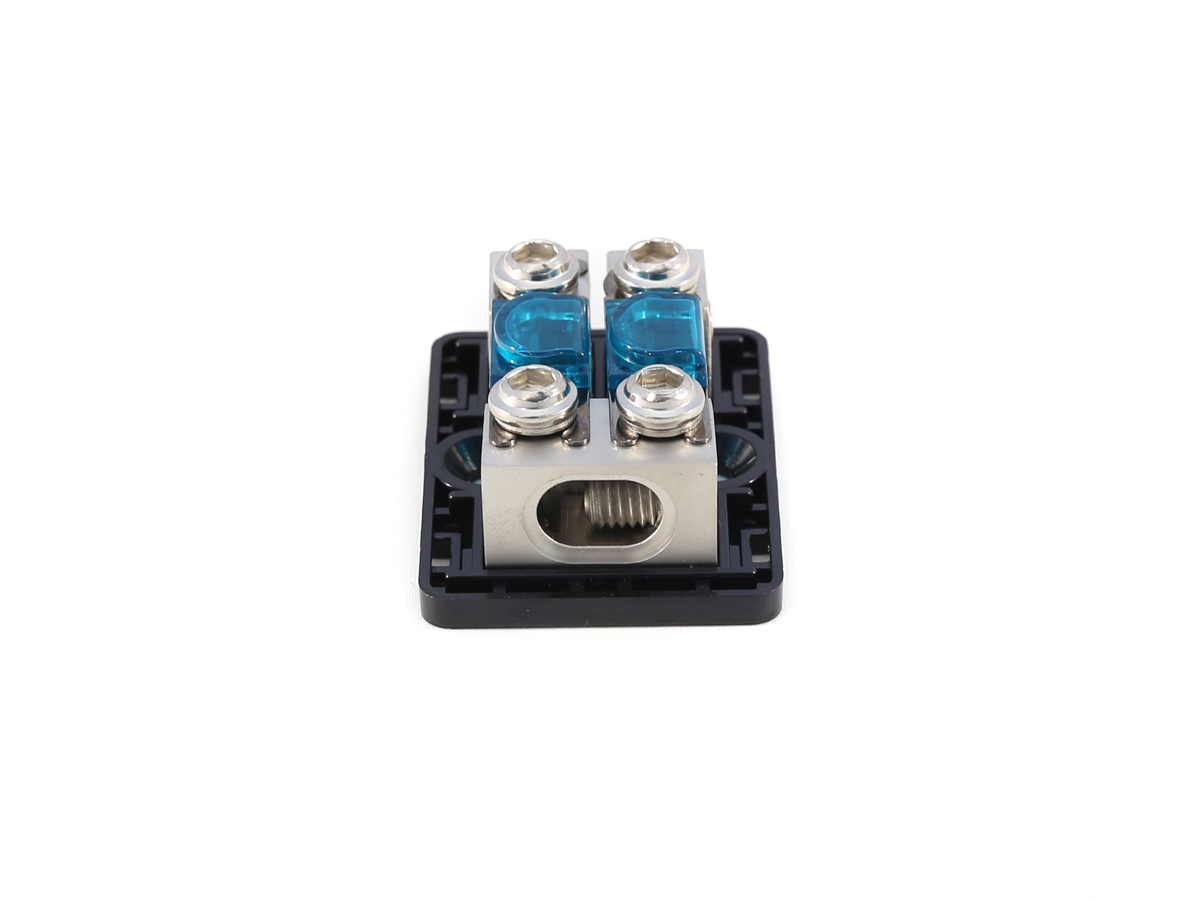

The BK-1024 fuse block has a single oval input which can accommodate either 4 or 1/0 as the main input gauge. Each output is fused by a Mini-ANL style fuse with a max load of 150A per circuit.

Your choice of two fuses is included with the BK-1024 Select "Link" to turn your BK-1024 into a two way ground distribution block

Dimensions L x W x H: 2.35" x 1.73" x 1.11"
Total Ports: 3
Inputs: 0-4 Gauge x 1
Ouputs: 4-8 Gauge x 2
Fuse Type: Mini-ANL (AFC)
Fuse Count: 2 Max Load: 150A x 2
Finish: Satin Nickel







Please click on a product quesion below to reveal the answer.

How do I determine what size fuses I need for this fuse block?
Each output of a fuse distribution block normally is connected to a single amplifier. Each amplifier will have either a fuse on board or the manufacture will state within the manual's installation guide or spec sheet what the max fuse rating or current draw of the amplifier is. If your amp has three 30A fuses on boards, you want a 100A fuse for that particular output of this block (90A is not an option we offer). If the second amp has a single 40A fuse, then a 40A fuse goes into that output of the block and thus a 100A and 40A would be required
The BK-1024 has an oval input, will my 1/0 gauge fit?
Yes, we have tested the BK-1024 with many types of cable. Simply squeeze your power wire between your thumb and index finger and you can slide 0, 2, and 4 gauge into the oval input.
