KCA 0 Gauge Power Amplifier Installation Kit

Brand: KnuKonceptz
Product SKU: KCA-PK0
Availability: In Stock
Weight: 5.6
Price: $49.99

Fuse Size 1
  • KCA 0 Gauge Power Amplifier Installation Kit
  • In line 0 Gauge ANL Fuse Holder
  • 0 Gauge Installation Parts

0 Gauge Amp Kits / 0 Gauge Power Kit

This complete kit includes

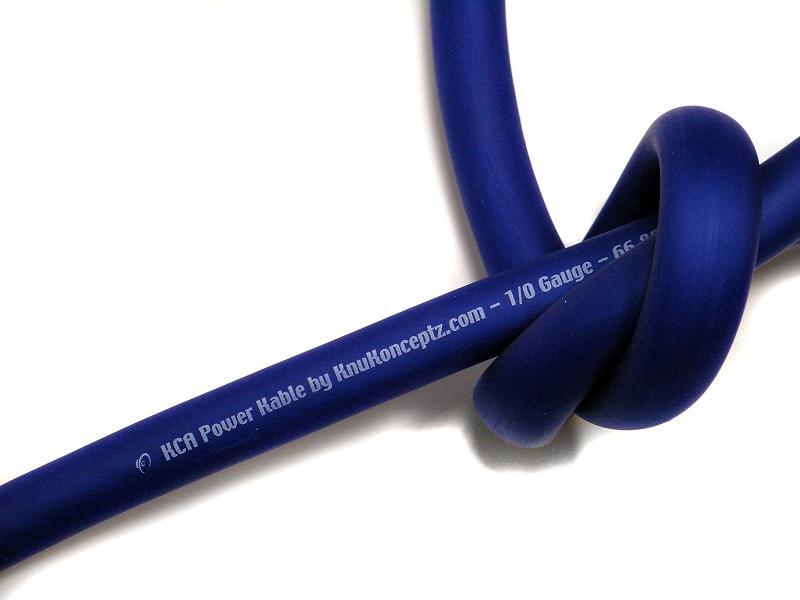

Power Wire (1) 17 feet of 0 AWG KCA CCA Battery Cable, Color: Blue
Ground Wire (1) 5 Feet of 0 AWG KCA CCA Battery Cable, Color: Black
RCA Cable (1) 5 Meter (16.5 feet) Bassik Twisted Pair 2-Channel RCA
Remote Wire (1) 16 feet of 18 gauge CCA, Color: Blue

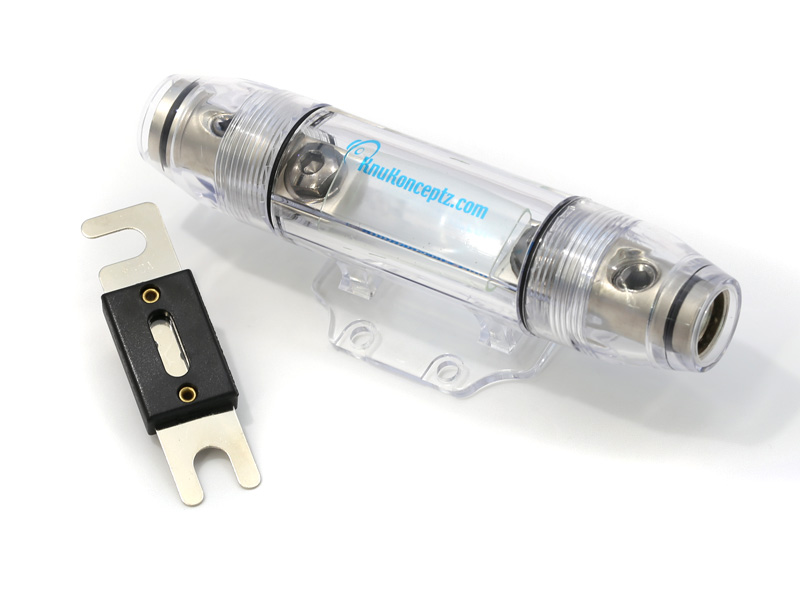

Fuse Holder (1) Waterproof ANL inline fuse holder, with 250A fuse

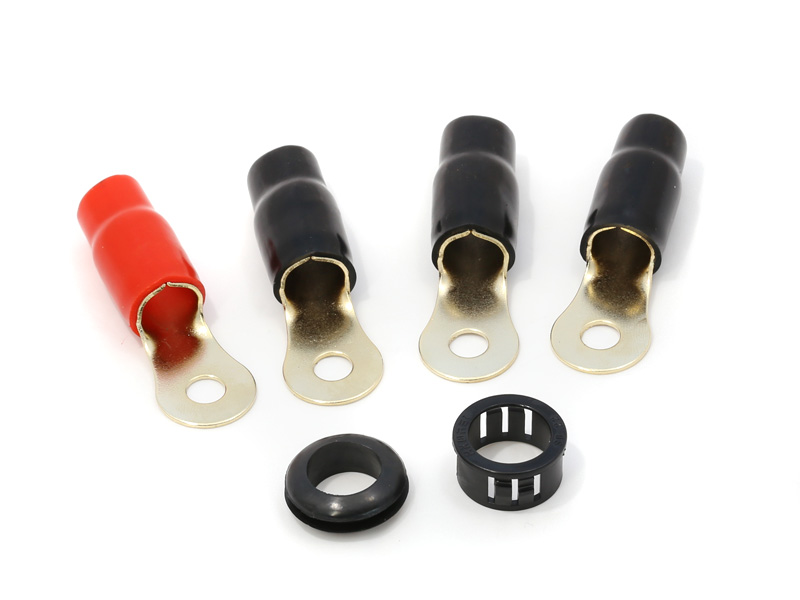

Ring Terminals (4) gold plated 0 gauge Ring Terminals

KnuKonceptz KCA Power Amp Installation kit features our oversized Copper Clad Aluminum (CCA) KCA Kable with ultra flex jacket- Included with our kit is your choice of ANL fuse and in addition to that, we include 5 feet of ground cable. Why? So that you can upgrade your stock battery to chassis ground. No other company offers that. The FH-20 ANL Inline fuse holder does not come installed within the cable, this allows the installer to place the inline fuse holder in an optimum location during installation. It also allows the installer to extend the power wire 1-3' by using the inline fuse holder to add cable to the main run (leaving the 17' as one unit and using the FH-20 to "splice" a few feet of wire)


KCA 0 Gauge Power Amp Installation Kit Includes

  • 17 Feet 0 AWG Blue KCA Power Wire
  • 5 Feet 0 AWG Black KCA Ground Wire
  • One 16 Foot Bassik 2 Channel RCA Cable
  • One FH-20 with Choice of Fuse size
  • 3 Black / 1 Red 0 Gauge ring terminals
  • 16 Feet Blue Remote / Amp Turn On WIre
  • 5 feet Split Loom and wire ties


KCA Kable 1/0 Gauge Spec:

-KCA Kable Power / Ground Wire consists of oversized, 34 gauge stranded, copper clad aluminum (CCA) conductors
-Maximum load @ 20 feet - 250A
-Outer diameter - 16mm, Conductor diameter ~12mm (2mm thick jacket surrounding conductor)

Please click on a product quesion below to reveal the answer.

How many watts can this amp kit handle?
At KnuKonceptz, we do not use "watts" to rate our amp kits. This is a very inaccurate method to determine what the proper gauge wire required for your amp installation. There are many car audio amplifier manufactures and not all of them represent the output of their product accurately. Please refer to your amplifier's fuse rating, this is a number a manufacture can not fake, well they could but it would put their product in harms way! Add up the fuses on the end of both of your amp (ex Amp A has three 40A fuses = 120A draw; Amp B has two 30A fuse = 60A Draw; 180A system total draw) If this number is under 250A, this kit will fit your application.
How do I determine what size fuses I need for the inline fuse holder?
Using the information from the answer above, the example system draw totals 180A therefore a 200A fuse is the minimum required and the safest option for the inline fuse holder.
Why should I upgrade the car's factory battery to chassis ground under the hood?
Your vehicle's wiring was engineered to work with the factory electrical load. By adding a massive current drawing load requiring a heavy 0 gauge power wire, you also need to upgrade the vehicle's ground wire. This kit includes the appropriate parts to complete this upgrade. The 5' section of ground should be cut one time (to make two sections). These do not need to be even length, but rather cut to fit your installation's need. You may only need 18" to connect the battery to your vehicles chassis. The remaining 0 gauge ground wire is then used to connect the audio amplifier to your car's chassis.
Can I alter this kit in any way before purchasing?
Our amp kits are made in large batches to reduce cost, which is passed onto you. We can not alter them in any way. Should you need to make alterations, you would have to purchase the items individually from our shopping cart.
