KonFUSED 2 Way Power and Ground Distribution Block

Brand: KnuKonceptz
Product SKU: KNF-60x2
Availability: Out of Stock
Weight: 2.7
Price: $39.99

Fuse Size 1 Fuse Size 2

This product is no longer in stock. Please click the notify me button below to be notified when it is back in stock.

  • KonFUSED 2 Way Power and Ground Distribution Block
  • KNF-60 Power and Ground Distribution Block - End
  • KNF-60 Power and Ground Distribution Block

The KNF60 uses 6 isolated ports in its patented design*. Each is then linked, fused, or left open to configure the block for your application's demands. Utilizing three platforms to fuse or link these ports makes the KNF60 unlike any distribution block before it. Each output has room for two links or Mini-ANL fuses allowing up to 300A of protection per circuit!

Each port on the KNF60 is capable of accepting 0 gauge or 4 gauge power cable depending on the fitting used. Now power for the largest installations can be easily be routed through one block!

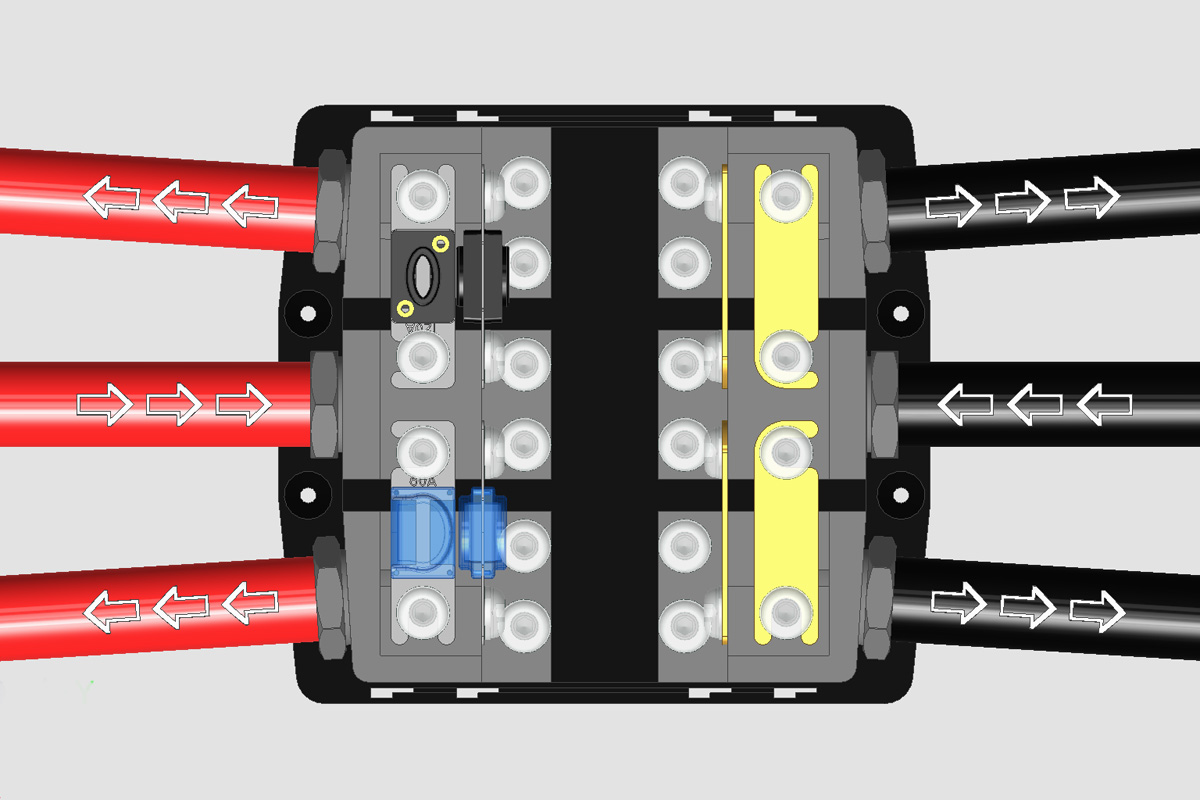

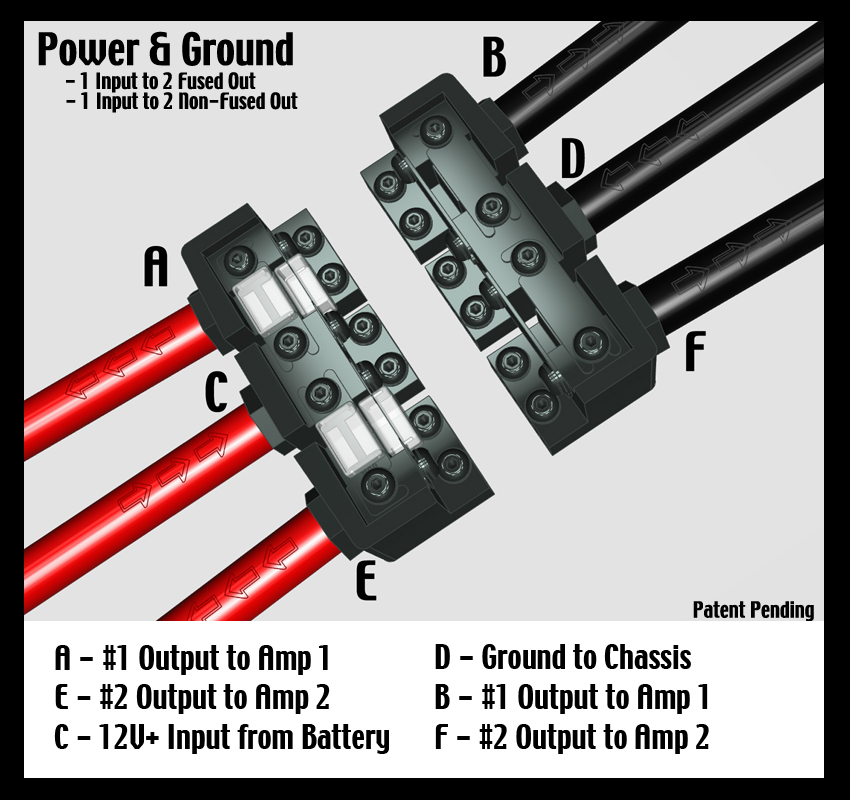

The KNF-60x2 is a two way fused power and ground distribution block in one. Included with this block are your choice if two fused outputs and 4 Mini-ANL Links to connect the three ground ports into one.


*Pat No, D695698, additional Pat Pending

Dimensions L x W x H: 4.9" x 4.6" x 1.85"
Total Ports: 6
Fittings Included: Four 0 Gauge, Two 4 Gauge
Fuse Type: Mini-ANL (AFC)
Fuse Count: 4 fuses and 4 links come with the KNF-60x2
Max Load: 300A x 2
Finish: Black Chrome


Overview – KNF Series Fuse / Distribution Blocks use our compression fittings to secure the input and output cable connections. By changing the fitting type, the installer can select from 1/0 or 4 gauge input or output


Notes – When installing power and ground into one confined area, please take extra caution connecting and installing fuses and links. It is best to configure the fuses and links prior to connecting the KNF-60 to either 12V power or ground sources until the unit is mounted and configured for your application.

Please see our compression fittings how to for more information regarding fitting/wire installation here http://www.knukonceptz.com/assets/Tech/knfhowto.pdf

Please click on a product quesion below to reveal the answer.

How do I determine what size fuses I need for this fuse block?
Each output of a fuse distribution block normally is connected to a single amplifier. Each amplifier will have either a fuse on board or the manufacture will state within the manual's installation guide or spec sheet what the max fuse rating or current draw of the amplifier is. If your amp has three 30A fuses on boards, you want a 100A fuse for that particular output of this block (90A is not an option we offer). If the second amp has a single 40A fuse, then a 40A fuse goes into that output of the block and thus a 100A and 40A would be required.
The KNF-60 has many configurations, am I able to change to a different option later?
Yes, the KNF-60 can be reconfigured at any time using additional links or fuses. It is up to the installer to configure the KNF-60 to bet match your installation's needs.
I ordered 100A and 160A fuses, why did I receive 50A(x2) and 80A(x2) fuses?
The KNF-60 uses two fuses per circuit (output). This lowers loss across a fused connection and increases the capacity of the fuse block. Using multiple smaller fuses keeps the block in a manageable size and offers less loss compared to similar large gauge block.
