Ultimate Battery Terminal

$14.99

Product code: UBT-P

Choose attributes above to add to cart.

Warranty

One Year warranty on all KnuKonceptz products

Returns

No restocking fees on timely returns

Item description

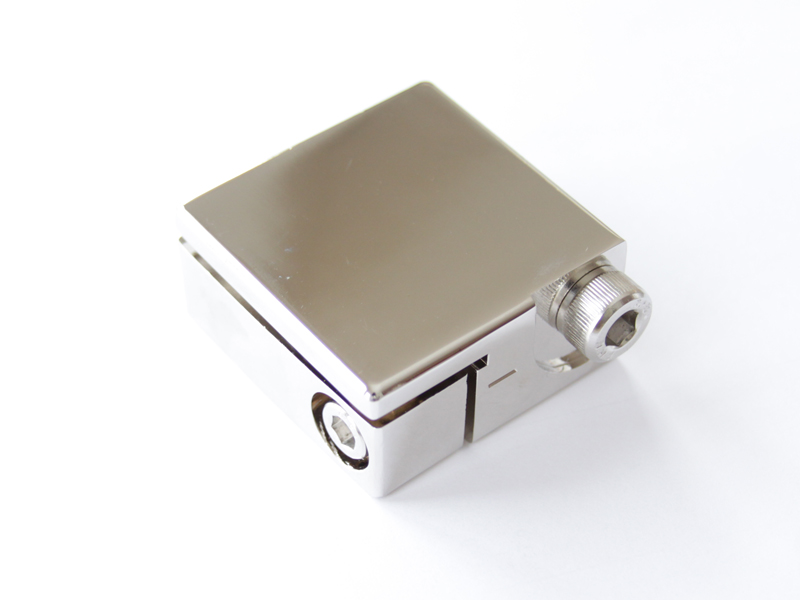

KnuKonceptz studied countless car battery terminals designed for premium car audio systems while developing the Ultimate Battery Terminal. Our top priority was a bulletproof battery post clamping system that would never fail. Using cross dowels that can be replaced on the fly created just that. Solid brass pins are inserted through the bottom of the UBT-840, should the installer cross thread or over tighten, these pins are easily removed and the terminal safely restored to functional in seconds.

In addition to a never-failing clamping system, the UBT-840 allows for instant OEM integration via the optional Top Post Adapters (sold separately) offered in both vertical and horizontal orientations. Installed in seconds, this adapter allows installers to use the vehicles OEM battery cable, which is great news for car enthusiasts who lease their vehicles. ALWAYS check the installation area for clearance when modifying the height and width of the battery connection! The UBT-840 also holds a variety of cable sizes by set screws and the optional ring terminal port.

Access to the three set screws is from the bottom of the terminal. Each UBT-840 accepts one each 1/0, 4 gauge and 8 gauge wire. These screws are accessible even after the insulated color coded cover is in place. Like all automotive battery terminals, the UBT-840 is made to SAE specifications, which means that the positive and negative terminals are machined to different diameters. This is a reverse polarity safety feature so that installers cannot tighten a negative terminal onto a positive battery post and cause serious damaged to vehicle electronics.

Item description

Innovative “Bulletproof” Design The design of our Ultimate Battery Terminals is based on years of customer feedback to create a best-in-class terminal that’s easy to install and made from high quality materials Accepts a Variety of Cable Gauges Each terminal accepts one 1/0, one 4 gauge, one 8 gauge and has one ring terminal port for ultimate flexibility Installs in Seconds / Minimal Tools Required All you need to install the UBT-840 is a utility knife and set of allen wrenches. Designed with Safety in Mind As safety feature, every terminal includes an insulated, color coded cover to protect your car from an accidental short at the battery

KnuKonceptz studied countless terminals options while developing the Ultimate Battery Terminal. Our top priority was a bulletproof battery post clamping system that would never fail. Using cross dowels that can be replaced on the fly created just that. Solid brass pins are inserted through the bottom of the UBT-840, should the installer cross thread or over tighten, these pins are easily removed and the terminal safely restored to functional in seconds. In addition to a never failing clamping system, the UBT-840 allows for instant OEM integration via the optional Top Post Adapters (sold separately) offered in both vertical and horizontal orientations. Installed in seconds, this adapter allows installers to use the vehicles OEM battery cable, which is great news for car enthusiasts who lease their vehicles. ALWAYS check the installation area for cleanance when modifying the height amd width of the battery connection! The UBT-840 also holds a variety of cable sizes by set screws and the optional ring terminal port. Access to the three set screws is from the bottom of the terminal. Each UBT-840 accepts one each 1/0, 4 gauge and 8 gauge wire. These screws are accessible even after the insulated color coded cover is in place. Like all automotive battery terminals, the UBT-840 is made to SAE specifications, which means that the positive and negative terminals are machined to different diameters. This is a reverse polarity safety feature so that installers cannot tighten a negative terminal onto a positive battery post and cause serious damaged to vehicle electronics.

KnuKonceptz studied countless terminals options while developing the Ultimate Battery Terminal. Our top priority was a bulletproof battery post clamping system that would never fail. Using cross dowels that can be replaced on the fly created just that. Solid brass pins are inserted through the bottom of the UBT-840, should the installer cross thread or over tighten, these pins are easily removed and the terminal safely restored to functional in seconds. In addition to a never failing clamping system, the UBT-840 allows for instant OEM integration via the optional Top Post Adapters (sold separately) offered in both vertical and horizontal orientations. Installed in seconds, this adapter allows installers to use the vehicles OEM battery cable, which is great news for car enthusiasts who lease their vehicles. ALWAYS check the installation area for cleanance when modifying the height amd width of the battery connection! The UBT-840 also holds a variety of cable sizes by set screws and the optional ring terminal port. Access to the three set screws is from the bottom of the terminal. Each UBT-840 accepts one each 1/0, 4 gauge and 8 gauge wire. These screws are accessible even after the insulated color coded cover is in place. Like all automotive battery terminals, the UBT-840 is made to SAE specifications, which means that the positive and negative terminals are machined to different diameters. This is a reverse polarity safety feature so that installers cannot tighten a negative terminal onto a positive battery post and cause serious damaged to vehicle electronics.

Innovative “Bulletproof” Design The design of our Ultimate Battery Terminals is based on years of customer feedback to create a best-in-class terminal that’s easy to install and made from high quality materials Accepts a Variety of Cable Gauges Each terminal accepts one 1/0, one 4 gauge, one 8 gauge and has one ring terminal port for ultimate flexibility Installs in Seconds / Minimal Tools Required All you need to install the UBT-840 is a utility knife and set of allen wrenches. Designed with Safety in Mind As safety feature, every terminal includes an insulated, color coded cover to protect your car from an accidental short at the battery

Item description

KnuKonceptz studied countless car battery terminals designed for premium car audio systems while developing the Ultimate Battery Terminal. Our top priority was a bulletproof battery post clamping system that would never fail. Using cross dowels that can be replaced on the fly created just that. Solid brass pins are inserted through the bottom of the UBT-840, should the installer cross thread or over tighten, these pins are easily removed and the terminal safely restored to functional in seconds.

In addition to a never-failing clamping system, the UBT-840 allows for instant OEM integration via the optional Top Post Adapters (sold separately) offered in both vertical and horizontal orientations. Installed in seconds, this adapter allows installers to use the vehicles OEM battery cable, which is great news for car enthusiasts who lease their vehicles. ALWAYS check the installation area for clearance when modifying the height and width of the battery connection! The UBT-840 also holds a variety of cable sizes by set screws and the optional ring terminal port.

Access to the three set screws is from the bottom of the terminal. Each UBT-840 accepts one each 1/0, 4 gauge and 8 gauge wire. These screws are accessible even after the insulated color coded cover is in place. Like all automotive battery terminals, the UBT-840 is made to SAE specifications, which means that the positive and negative terminals are machined to different diameters. This is a reverse polarity safety feature so that installers cannot tighten a negative terminal onto a positive battery post and cause serious damaged to vehicle electronics.

Innovative Design: Years of customer feedback allowed us to create a best-in-class terminal that’s easy to install and integrates your OEM battery cable connection.



Accepts a Variety of Cable Gauges: Each terminal accepts one 1/0, one 4 gauge, one 8 gauge and has one ring terminal port for ultimate flexibility



Installs in Seconds: All you need for your installation is a utility knife and set of allen wrenches.

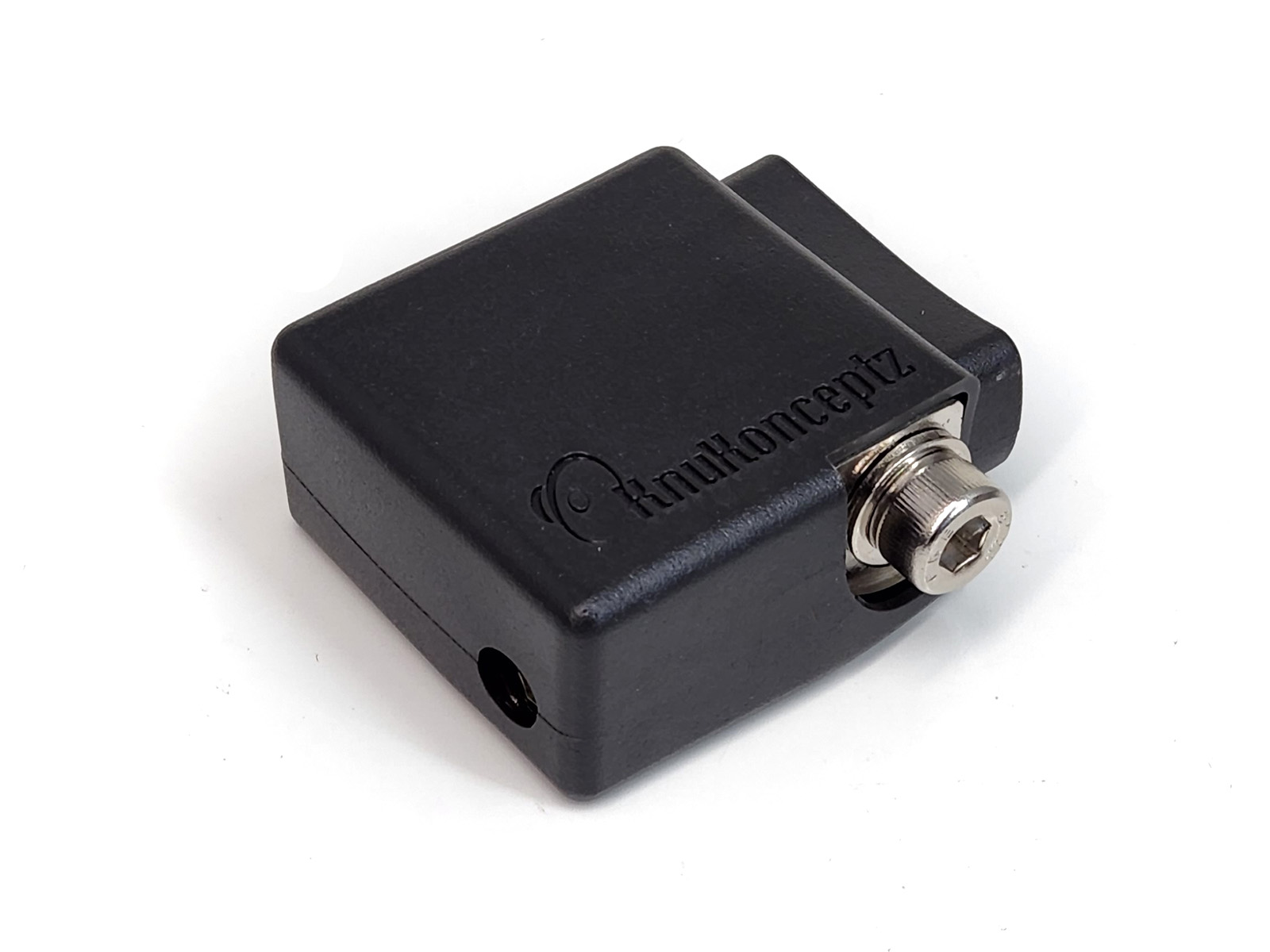

Designed with Safety in Mind: Every terminal includes an insulated, color coded cover to protect your car from an accidental short at the battery



Specifications

UBT Battery
FinishNickel Chrome
Outputs0 Gauge, 4 Gauge, 8 Gauge + OEM Connection
Dimensions2.625″(W) x 2.0″(H) x 1.125″(D) with cover
Warranty1 Year
Insulated Cover IncludedYes

Specifications

Ultimate Battery Terminal
Finish Nickel Chrome
Dimensions (L x W x H) 2.6" x 2.0" x 1.125" with cover
Outputs 0 Gauge, 4 Gauge, 8 Gauge + side terminal port
Insulated Cover Included Yes

Description

KnuKonceptz studied countless car battery terminals designed for premium car audio systems while developing the Ultimate Battery Terminal. Our top priority was a bulletproof battery post clamping system that would never fail. Using cross dowels that can be replaced on the fly created just that. Solid brass pins are inserted through the bottom of the UBT-840, should the installer cross thread or over tighten, these pins are easily removed and the terminal safely restored to functional in seconds.

In addition to a never-failing clamping system, the UBT-840 allows for instant OEM integration via the optional Top Post Adapters (sold separately) offered in both vertical and horizontal orientations. Installed in seconds, this adapter allows installers to use the vehicles OEM battery cable, which is great news for car enthusiasts who lease their vehicles. ALWAYS check the installation area for clearance when modifying the height and width of the battery connection! The UBT-840 also holds a variety of cable sizes by set screws and the optional ring terminal port.

Access to the three set screws is from the bottom of the terminal. Each UBT-840 accepts one each 1/0, 4 gauge and 8 gauge wire. These screws are accessible even after the insulated color coded cover is in place. Like all automotive battery terminals, the UBT-840 is made to SAE specifications, which means that the positive and negative terminals are machined to different diameters. This is a reverse polarity safety feature so that installers cannot tighten a negative terminal onto a positive battery post and cause serious damaged to vehicle electronics.

Additional information

Weight N/A
Application

Car, Marine

Usage

Power

Polarity

,

Simple Set Screw Connections

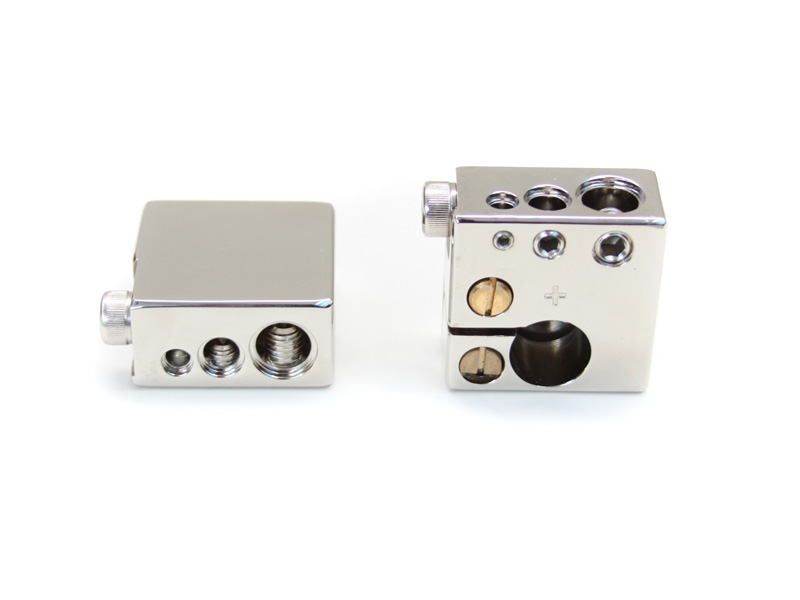

Each UBT-840 accepts one each 1/0, 4 gauge and 8 gauge wire. Access to the three set screws is from the bottom of the terminal. These screws are accessible even after the insulated color coded cover is in place.

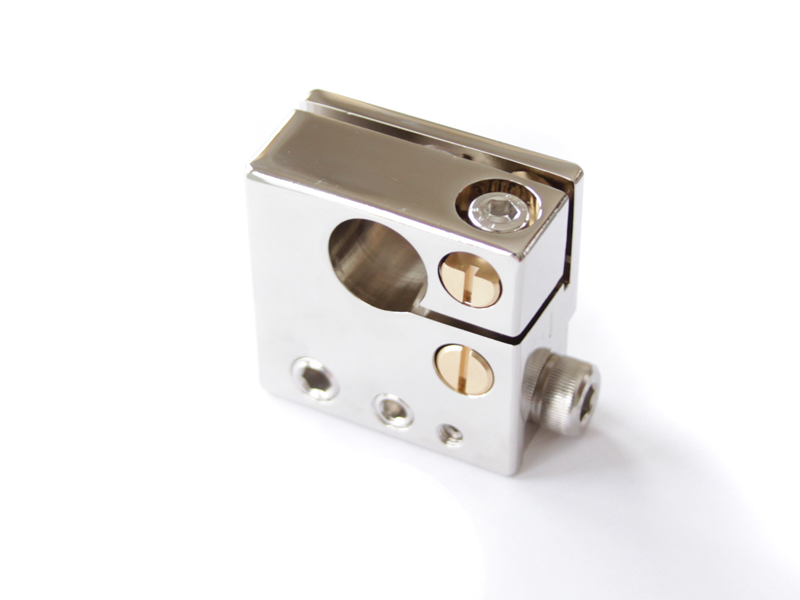

Cross Dowel Clamping


Cross Dowel Clamping KnuKonceptz studied countless terminal options while developing the Ultimate Battery Terminal. Our top priority was a bullet proof battery post clamping system that would never fail. Using cross dowels that can be replaced on the fly created just that.

Solid brass pins are inserted through the bottom of the UBT-840, should the installer cross thread or over tighten, these pins are easily removed and the terminal safely restored to functional in

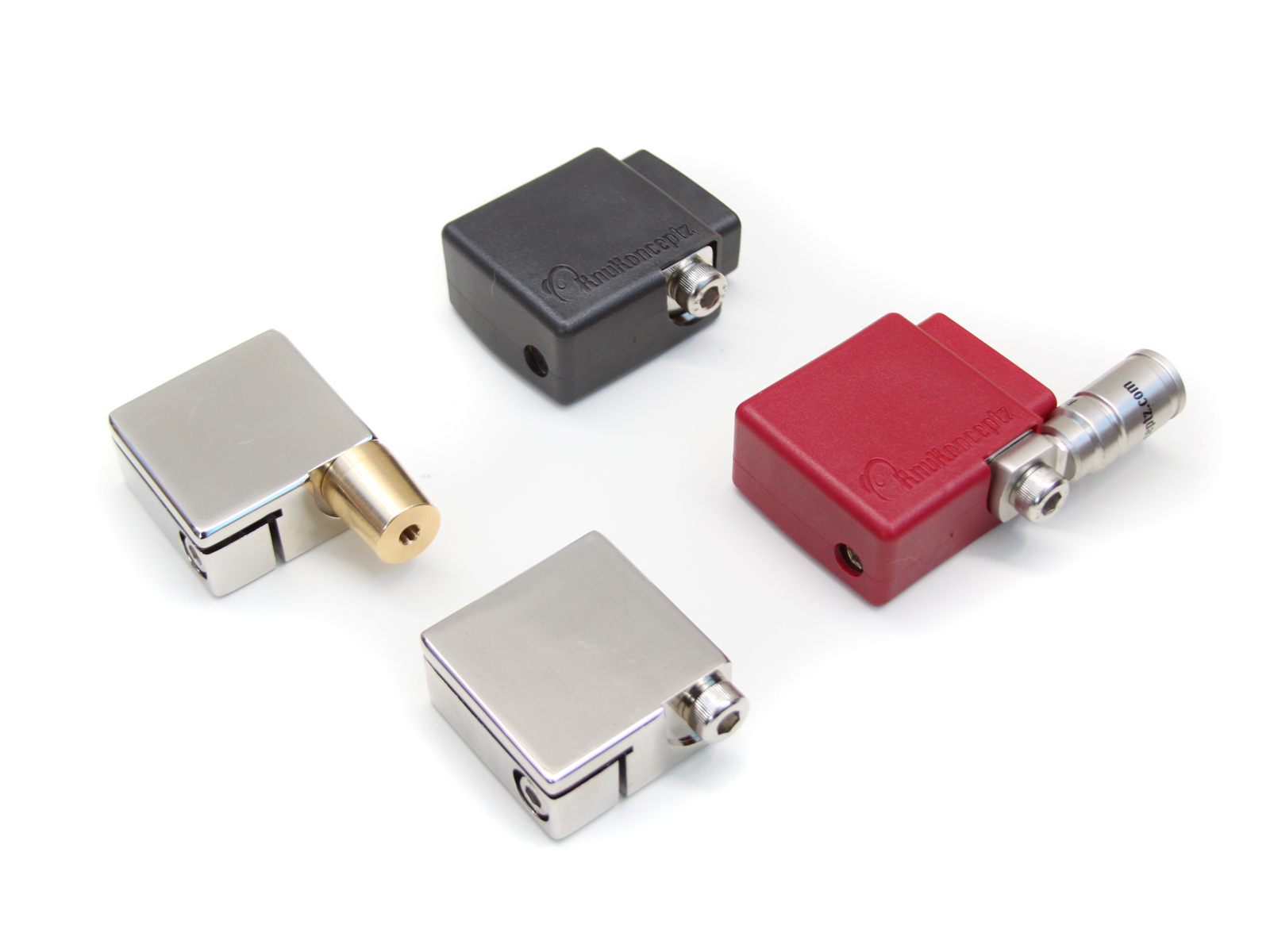

Optional Hardware


The UBT-840 allows several optional configurations using the following additional hardware (sold separate)

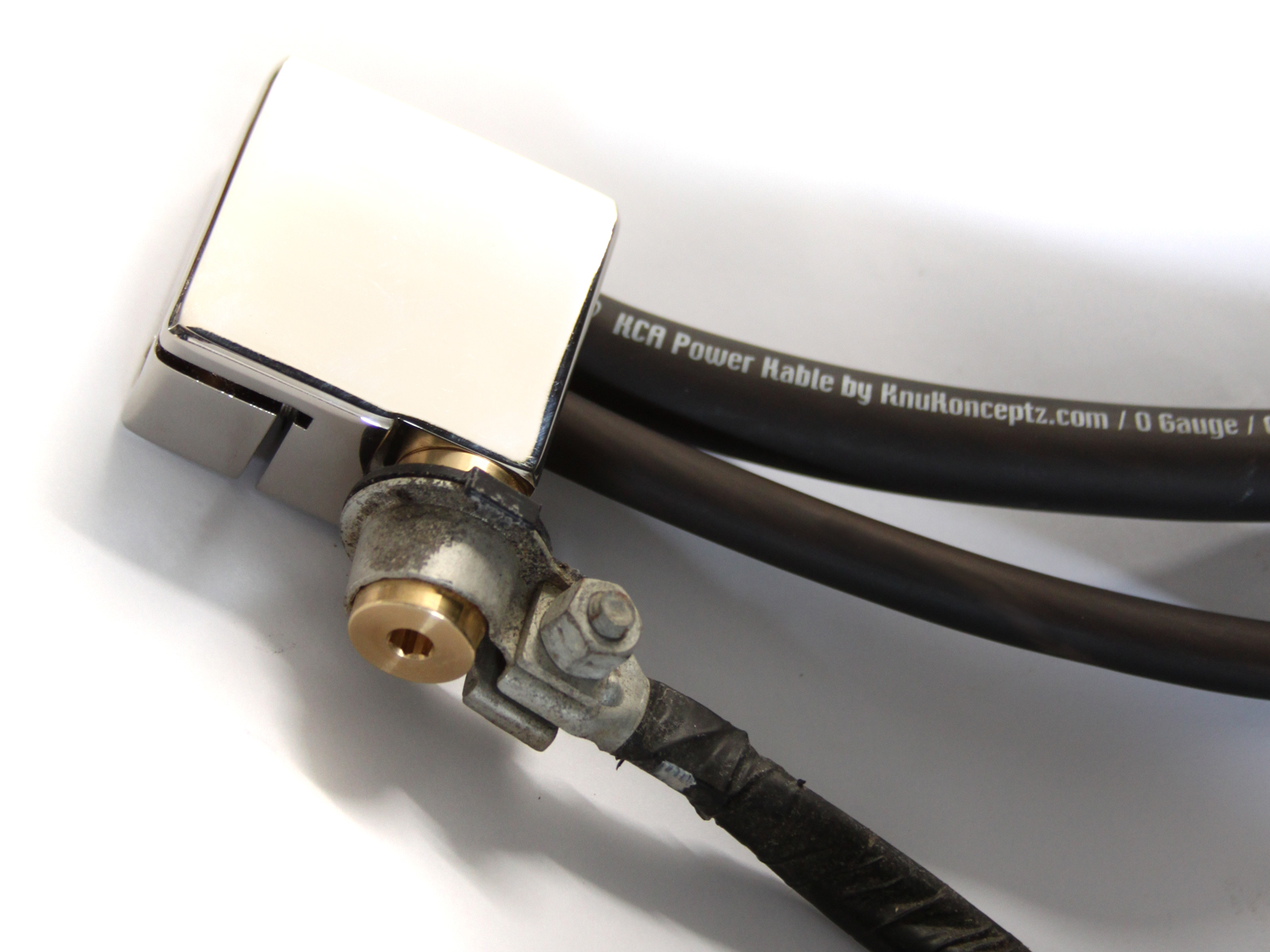

  • Top Post Adapters(TPA) – Sold Individually, our TPAs allows for the side terminal output to connect your OEM battery cabling directly to the UBT-840 without any cutting to your factory harness. Simply rotate the battery cable 90 degrees and secure to the UBT-840
  • Vertical Top Post Adapter(VTPA) – Sold as a positive and negative pair the VTPA’s maintain your factory battery cable’s orientation directly on top of the car’s battery. This is perfect if you have a fuse built into the cable or a larger harness that can not rotate or bend.
  • Set Screw Ring Terminals – Need another large gauge output? Easily add any gauge wire to your battery utilizing the ring terminal port option.

Frequent questions

  • How is wire secured to this battery terminal?

    Unscrew the allen screw from the bottom of the battery terminal; strip the jacket off of the cable; insert the bare wire into the battery terminal; tighten the set screw into the terminal, compressing the bare strands of the cable. If using the insulated color coded cover, you will need to thread the cables through the cover’s rear opening. This hood protects the exposed area of the cable at the connection point.

  • Is there a difference between the Positive and Negative top post terminals?

    Yes, the Negative top post terminal’s opening is smaller in diameter so that it can not be mounted on the positive battery post and cause a reverse in polarity within the vehicle..

  • How can I connect 2 Gauge wire with these terminals?

    The 0 Gauge port or ring terminal port can be used with a 2 gauge cable as well

  • Can I purchase additional cross dowels for this model?

    Yes, additional cross dowels are available for purchase. They are $0.99 each
