Set Screw Ring Terminals - 1/0 Gauge Pair

Brand: KnuKonceptz
Product SKU: SSRT0HS
Availability: Out of Stock - ETA: 04/05/2019
Weight: 0.35
Price: $6.50

This product is no longer in stock. Please click the notify me button below to be notified when it is back in stock.

  • Set Screw Ring Terminals - 1/0 Gauge Pair
  • 0 Gauge Set Screw Ring Terminal
  • Set Screw Ring Terminal with Heat Shrink

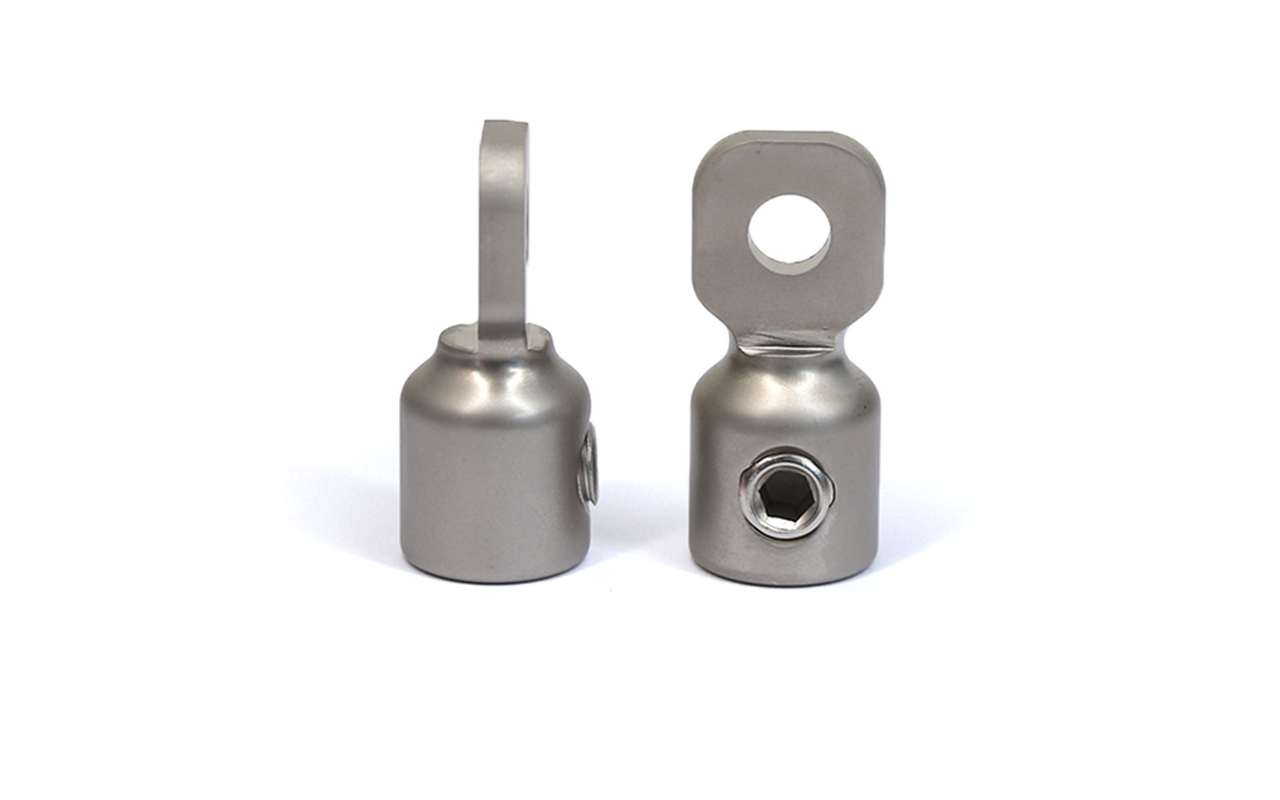

Sold as pairs, these compact nickel plated 0 Gauge Set Screw Ring Terminals are great for grounding, making connections onto battery terminals, and dressing up your connections.

Included with each pair of terminals is one red and one black KnuKonceptz 25mm Heat Shrink with adhesive lining.

Input Gauge: 0 or 2 gauge gauge
Length: 1.80" (46mm)
Diameter: 0.785" (20mm)
Ring Opening Diameter: 5/16" (8mm)
Finish: Satin Nickel
Heat Shrink Included: Yes - Red/Black 25mm
Termination: 5mm Allen Set Screw

Please click on a product quesion below to reveal the answer.

How do I correctly apply the heat shrink?
Line the heat shrink up with the "neck" of the terminal. This will leave the heat shrink slightly extended from the barrel of the terminal, towards the ring end. Preferably use a heat gun, these allow for ample heat and the best method for controlled amount of heat. As heat is applied, turn the assembly so that you can evenly heat the tubing.

Once the tubing has shrunk to a snug fit, keep heat applied until you see the adhesive glue lining gel at the ends. Once you see this, you can remove heat and allow the terminal to cool.
