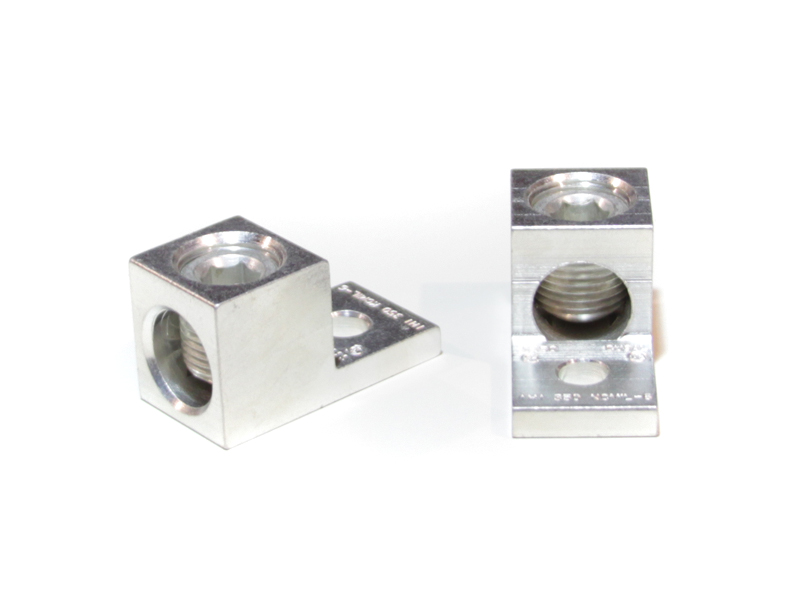

For use with KnuKonceptz Kolossus 4/0 through 1/0 Gauge battery and ground cable. The SSLUG40 is made from 6061-T6 aerospace grade aluminum that has been tin plated. 6061 Aluminum is corrosion resistant, coupled with the tin plated, these gigantic lugs are lightweight and durable.
A 3/8″ Allen wrench is required to use this product. Made in the USA!
| UBT Battery | |
|---|---|
| Finish | Nickel Chrome |
| Outputs | 0 Gauge, 4 Gauge, 8 Gauge + OEM Connection |
| Dimensions | 2.625″(W) x 2.0″(H) x 1.125″(D) with cover |
| Warranty | 1 Year |
| Insulated Cover Included | Yes |
| Set Screw 4/0 Gauge Ring Terminal / Ground Lug | |
|---|---|
| Material | 6061-T6 Aluminum |
| Finish | Tin Plated |
| Input Gauge | 4/0, 2/0 , or 1/0 (18mm diameter input) |
| Dimensions - L x W x H | 2" x 1" x 1" |
| Warranty | One Year |
Unscrew the allen screw from the terminal; strip the jacket off of the cable; insert the bare wire into the terminal; tighten the set screw into the terminal, compressing the bare strands of the cable.
Yes, this terminal can secure large gauge cables such as 4/0 (18mm) thru to 1/0 (12mm) without any additional adapters
