Bassik 2 Way 0 to 0 Gauge Fuse Distribution Block

$10.99

Product code: BK-2020

Choose attributes above to add to cart.

Warranty

One Year warranty on all KnuKonceptz products

Returns

No restocking fees on timely returns

Item description

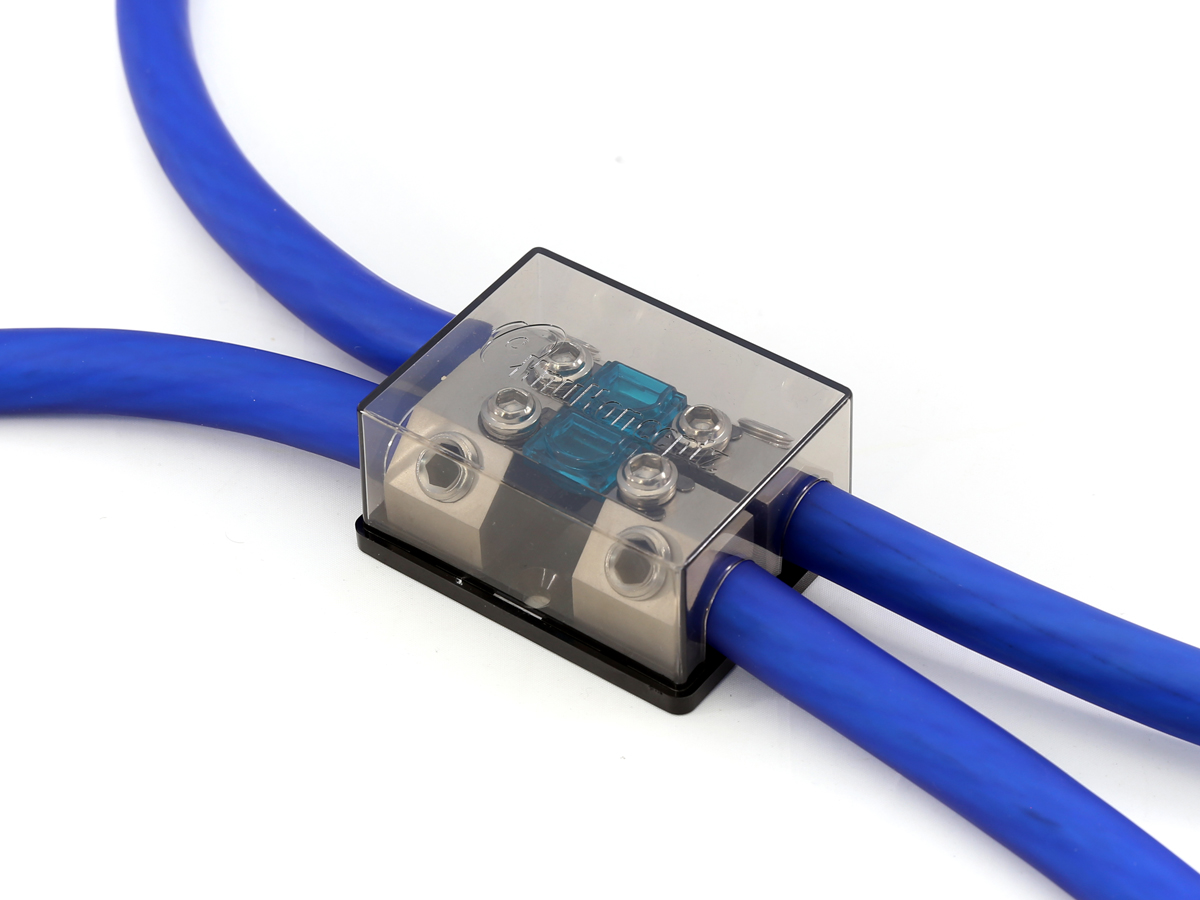

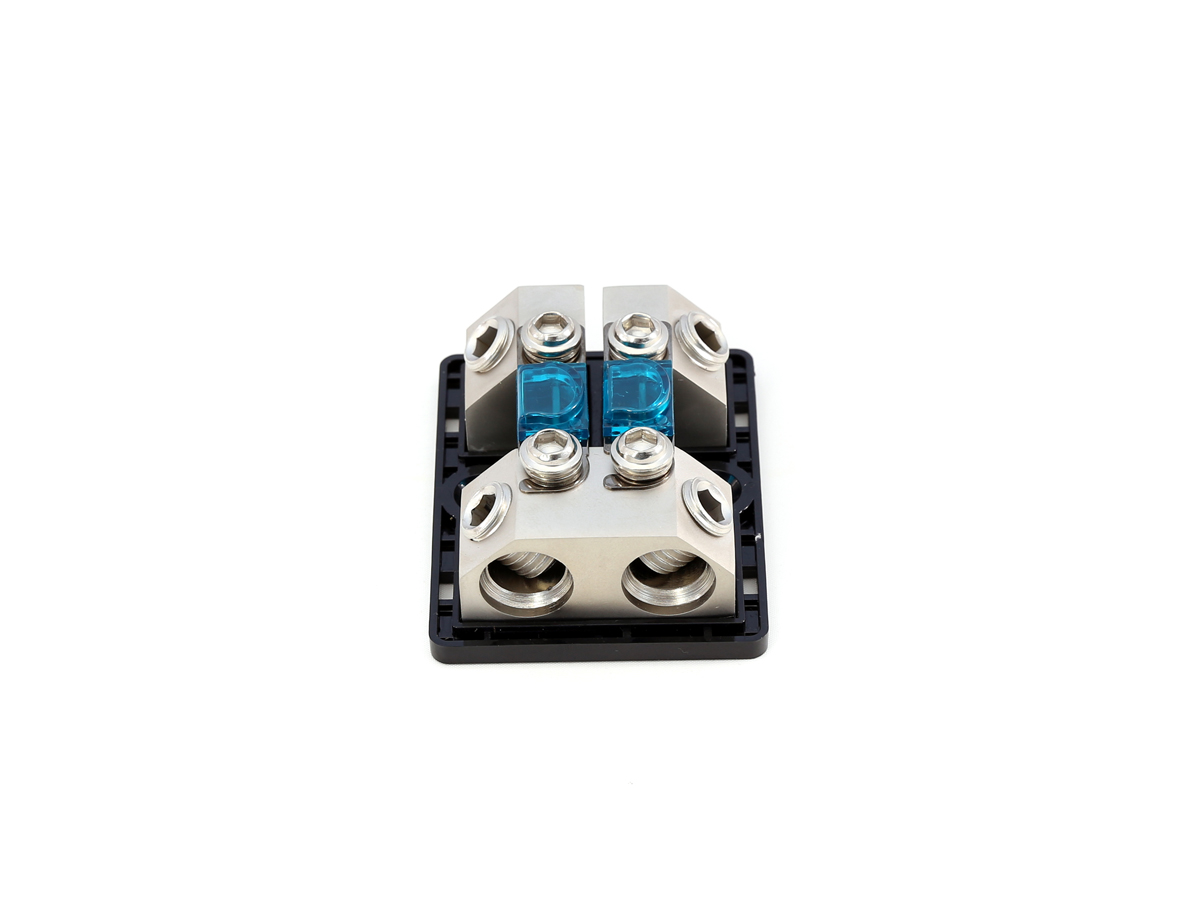

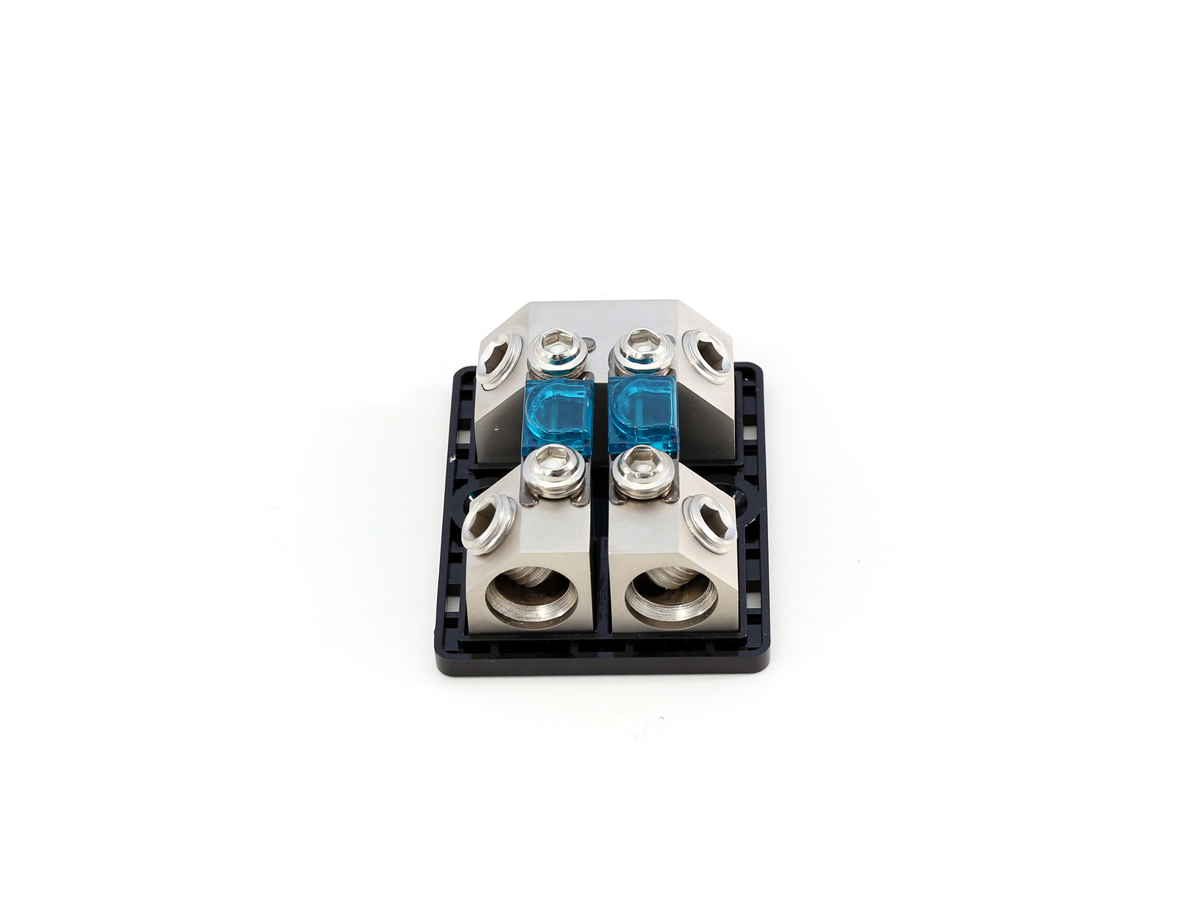

Bassik – simple, clean, easy. This is the foundation of what KnuKonceptz calls Bassik. Easy to install, simple to connect and cost effective! The BK-2020 accepts two 0 or 4 gauge in and two 0 or 4 gauge power wire out without the use of adapters. Oversized allen screws can secure either gauge without any modification or additional parts to complicate the design.

The BK-2020 fuse block has dual inputs which can be used to link additional blocks together to make 4 or 6 way fuse distribution simple. Each output is fused by a Mini-ANL style fuse with a max load of 150A per circuit.

Your choice of two fuses is included with the BK-2020 Select “Link” to turn your BK-2020 into a two way ground distribution block

Item description

Item description

Bassik - simple, clean, easy. This is the foundation of what KnuKonceptz calls Bassik. Easy to install, simple to connect and cost effective! The BK-2020 accepts two 0 or 4 gauge in and two 0 or 4 gauge power wire out without the use of adapters. Oversized allen screws can secure either gauge without any modification or additional parts to complicate the design.
The BK-2020 fuse block has dual inputs which can be used to link additional blocks together to make 4 or 6 way fuse distribution simple. Each output is fused by a Mini-ANL style fuse with a max load of 150A per circuit.
Your choice of two fuses is included with the BK-2020 Select "Link" to turn your BK-2020 into a two way ground distribution block

Choose Your Fuse: Fuses are always included at no extra charge! Need help calculating which size you need? See our FAQ!



You’re Grounded: KnuKonceptz makes your wiring clean with our ground links. Pair up your fuse block with these brass buss bars and turn your fuse block into a ground block.



No Adapters Needed: Internal adapters add contact points that could increase resistance within your electrical system, sucking valuable current from your amplifiers.

Specifications

UBT Battery
FinishNickel Chrome
Outputs0 Gauge, 4 Gauge, 8 Gauge + OEM Connection
Dimensions2.625″(W) x 2.0″(H) x 1.125″(D) with cover
Warranty1 Year
Insulated Cover IncludedYes

Specifications

Bassik 2 Way 0 to 0 Gauge Fuse Distribution Block
Dimensions (L x W x H) 2.9" x 2.3" x 1.35"
Input Gauge 1/0 to 4 Gauge
Output Gauge 1/0 to 4 Gauge (x2)
Fuse Type Mini-ANL
Finish Nickel Silver

Description

Bassik – simple, clean, easy. This is the foundation of what KnuKonceptz calls Bassik. Easy to install, simple to connect and cost effective! The BK-2020 accepts two 0 or 4 gauge in and two 0 or 4 gauge power wire out without the use of adapters. Oversized allen screws can secure either gauge without any modification or additional parts to complicate the design.

The BK-2020 fuse block has dual inputs which can be used to link additional blocks together to make 4 or 6 way fuse distribution simple. Each output is fused by a Mini-ANL style fuse with a max load of 150A per circuit.

Your choice of two fuses is included with the BK-2020 Select “Link” to turn your BK-2020 into a two way ground distribution block

Additional information

Weight 0.55 lbs
Fuse Output 1

Ground Link, 20 Amp, 30 Amp, 40 Amp, 50 Amp, 60 Amp, 80 Amp, 100 Amp, 120 Amp, 150 Amp

Fuse Output 2

Ground Link, 20 Amp, 30 Amp, 40 Amp, 50 Amp, 60 Amp, 80 Amp, 100 Amp, 120 Amp, 150 Amp

Application

Car, Marine, Solar

Usage

Power

Flexibility – Dual Cable Inputs


The BK-2030 Fuse Block has dual cable inputs, only one is required to power all three outputs. With the second cable port you can:

  • Daisy chain additional blocks for additional outputs in larger systems
  • Connect to a rear mounted battery, linking it to the rest of your system
  • Add a capacitor into the system
  • Using both inputs from a battery source will reduce voltage loss
  • IF Installing a combined fuse rating over 350A (total sum of fuses installed), connecting both inputs to a battery source is advised.

No Adapters Needed – Oversized Hardware


  • Internal gauge adapters add unnecessary contact points
  • Extra contact points can increase resistance, lowering your voltage.
  • By using larger diameter set screws, our block can hold a large or small gauge wire without the need for an adapter

Frequent questions

  • The BK-2020 has two inputs, do I need to use both?

    No, the second input is optional. Only one input is required to power both fused outputs. The second input is for connecting a second battery or daisy chain configuration to additional distribution blocks. Having the second port makes this item more flexible to the installer than a single port block. Having this auxiliary port allows you to easily connect a second battery, capacitor or other non fused accessory into your system.

  • How do I determine what size fuses I need for this fuse block?

    Each output of a fuse distribution block normally is connected to a single amplifier. Each amplifier will have either a fuse on board or the manufacture will state within the manual’s installation guide or spec sheet what the max fuse rating or current draw of the amplifier is. If your amp has three 30A fuses on boards, you want a 100A fuse for that particular output of this block (90A is not an option we offer). If the second amp has a single 40A fuse, then a 40A fuse goes into that output of the block and thus a 100A and 40A would be required

  • Can I make this fuse block into a ground block?

    Yes, KnuKonceptz offers ground links to turn this block into a 2 Way Ground Block. These Mini-ANL buss bars replace the fuse and allow the BK-2020 to be used as a common grounding point.
