  • KonFUSED 2 Way Fuse Block + In Line Fuse Holder

The KNF60 uses 6 isolated ports in its patented design*. Each is then linked, fused, or left open to configure the block for your application's demands. Utilizing three platforms to fuse or link these ports makes the KNF60 unlike any distribution block before it. Each output has room for two links or Mini-ANL fuses allowing up to 300A of protect per circuit!

Each port on the KNF60 is capable of accepting 0 gauge or 4 gauge power cable depending on the fitting used. Now power for the largest installations can be easily be routed through one block!

Have a two way system with an extra battery in the rear? The KNF-60 can do the task of system distribution and in line fuse all in one chassis. The x21 configuration of the KNF-60 allows for two inputs, and two fused outputs for the distribution section. One input and one output is available for the inline fuse section of the KNF-60. Included with this item are your choice of three sets of fuses and 2 Mini-ANL Links.



*Pat No, D695698, additional Pat Pending

Dimensions L x W x H: 4.9" x 4.6" x 1.85"
Total Ports: 6
Fittings Included: Four 0 Gauge, Two 4 Gauge
Fuse Type: Mini-ANL (AFC)
Fuse Count: 6 fuses and 2 links come with the KNF-60x21 Max Load: 300A x 3
Finish: Black Chrome



Overview – KNF Series Fuse / Distribution Blocks use our compression fittings to secure the input and output cable connections. By changing the fitting type, the installer can select from 1/0 or 4 gauge input or output

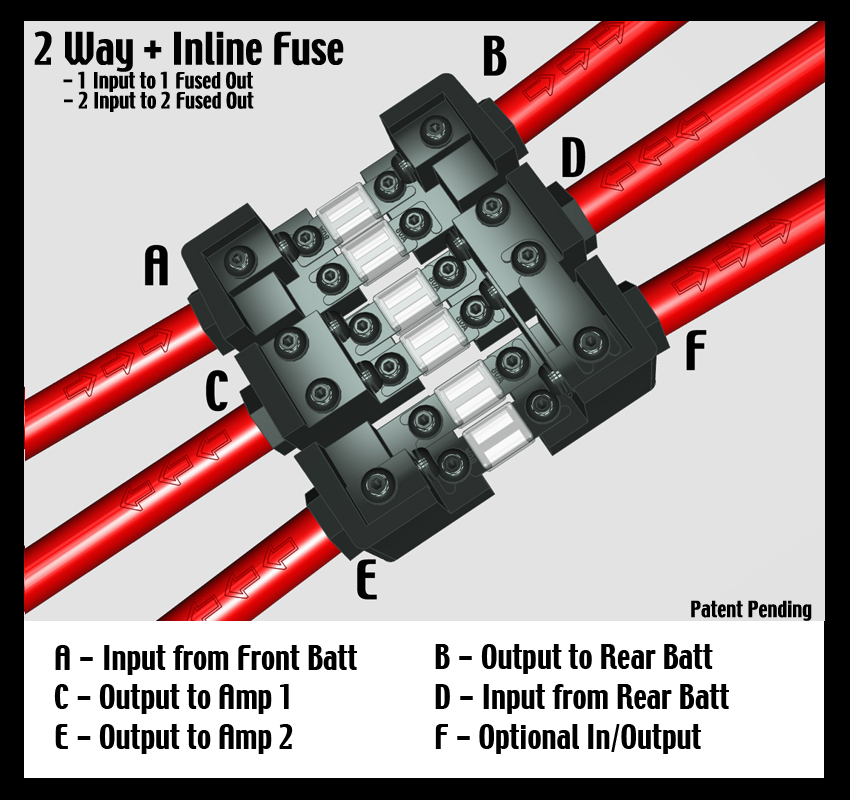

Configuration – To setup your x21 fuse block, install the Mini-ANL links across the top and vertical fuse surfaces from the center port of the KNF-60 (D in schematic). This is then your input side of the distribution block. Fuses connect the lower fuse platform from the right and left side of the KNF-60 (D & F to C & E).

In line Fuse The main power wire from the front of the vehicle connects to A and is fused through to B, which should be 1-2' away from the rear battery.

Please see our compression fittings how to for more information regarding fitting/wire installation here http://www.knukonceptz.com/assets/Tech/knfhowto.pdf

Please click on a product quesion below to reveal the answer.

How do I determine what size fuses I need for this fuse block?
Each output of a fuse distribution block normally is connected to a single amplifier. Each amplifier will have either a fuse on board or the manufacture will state within the manual's installation guide or spec sheet what the max fuse rating or current draw of the amplifier is. If your amp has three 30A fuses on boards, you want a 100A fuse for that particular output of this block (90A is not an option we offer). If the second amp has a single 40A fuse, then a 40A fuse goes into that output of the block and thus a 100A and 40A would be required.
The KNF-60 has many configurations, am I able to change to a different option later?
Yes, the KNF-60 can be reconfigured at any time using additional links or fuses. It is up to the installer to configure the KNF-60 to bet match your installation's needs.
I ordered 100A and 160A fuses, why did I receive 50A(x2) and 80A(x2) fuses?
The KNF-60 uses two fuses per circuit (output). This lowers loss across a fused connection and increases the capacity of the fuse block. Using multiple smaller fuses keeps the block in a manageable size and offers less loss compared to similar large gauge block.
